Reducing Defects in PVC Profiles — A Stabilizer Manufacturer’s Practical Solution

Our team at TopJoy Chemical has specialized in manufacturing PVC Stabilizer for PVC Profiles and customizing additive packages for profile extruders across Asia and Europe. We’ve worked with hundreds of window and door profile makers, and one consistent pain point we’ve observed is unexpected defects that drive up scrap rates, delay shipments, and erode profit margins.

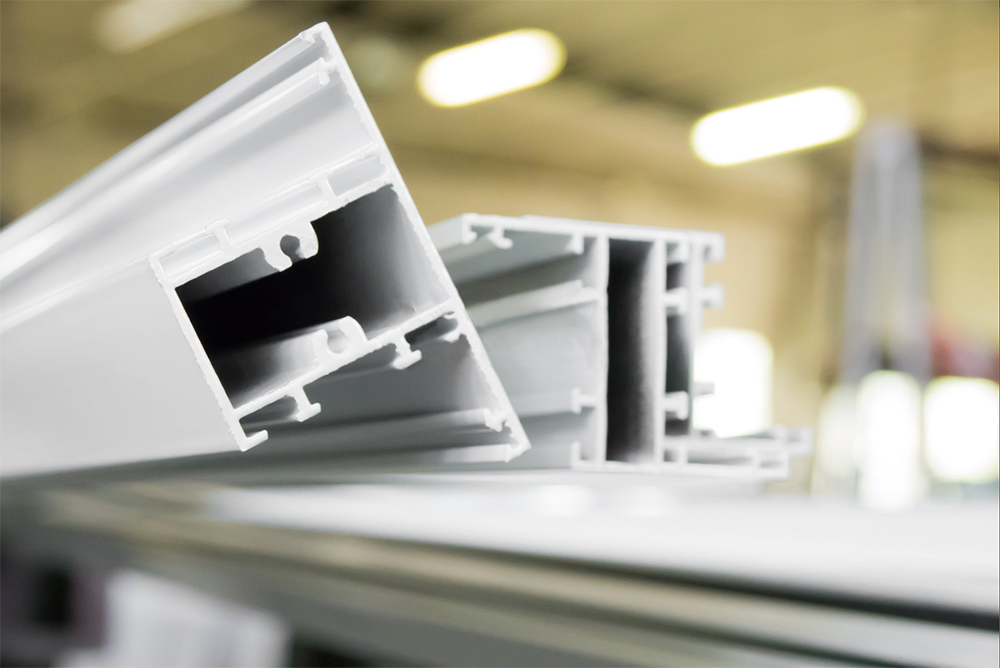

This case study details a real-world project we completed in 2025 for a mid-sized PVC profile manufacturer in Eastern China. The client was producing white uPVC window profiles (60mm and 80mm series) for residential construction. They were facing chronic quality issues: yellowing, surface streaks, bubbles, brittleness, and inconsistent weld strength. Their defect rate hovered around 8–10%, and monthly scrap costs exceeded $12,000.

Our role as their PVC stabilizer supplier was not just to sell a product, but to diagnose the root causes, reformulate their stabilizer system, and help them implement process adjustments to cut defects dramatically. Below is how we approached, executed, and validated the solution.

Client Background & Core Problems

The client ran a 5-extruder line (conical twin-screw) running 24/5. Their base formulation included:

• PVC resin

• 4–5 phr conventional Ca-Zn stabilizer (general-purpose grade)

• Titanium dioxide

• ACR processing aid

• CPE impact modifier

• Internal/external lubricants

Despite following standard industry practices, they could not resolve four recurring defects:

1. Thermal Yellowing & Black Streaks

• Symptom: Profiles developed a pale yellow tint or dark longitudinal streaks right after extrusion, especially after 2–3 hours of continuous production.

• Frequency: 30–40% of batches showed visible discoloration.

2. Surface Bubbles & Pockmarks

• Symptom: Small, dense bubbles or rough pockmarks on the profile surface and inner chambers.

• Impact: Ruined aesthetic quality; 15% of profiles required rework or rejection.

3. Brittleness & Low Impact Strength

• Symptom: Profiles cracked easily during handling, cutting, or welding. Corner welds failed standard impact tests.

• Root cause suspected: Poor thermal stability leading to polymer chain degradation.

4. Die Buildup & Plate-Out

• Symptom: Resinous deposits accumulated on die lips and internal surfaces every 2–3 hours, requiring frequent shutdowns for cleaning.

• Effect: Unstable extrusion, uneven dimensions, and increased surface defects.

Their initial stabilizer was a basic calcium-zinc (Ca-Zn) blend. While it met basic environmental requirements, it lacked the thermal stability, lubrication balance, and synergistic additives needed for high-speed, long-run profile extrusion.

Our Diagnostic Approach

We spent 3 days on-site conducting a full audit:

• Formulation review: Checked stabilizer dosage, lubricant ratios, and filler loading.

• Process testing: Recorded temperatures (barrel, die), screw speed, vacuum level, and residence time.

• Sample analysis: Tested thermal stability, melt flow, and yellowness index of their current product.

• Stabilizer evaluation: Ran side-by-side trials with our advanced PVC Stabilizer for PVC Profiles.

Key lab findings:

• Their existing stabilizer only provided 6–7 minutes of Congo Red stability (180°C), well below the 10+ minutes required for their profile thickness and run length.

• Zinc burn (premature darkening) occurred under high-shear conditions.

• Poor lubrication synergy caused uneven plasticization and melt fracture.

Solution: Reformulated Stabilizer System

We designed a custom one-pack PVC Stabilizer for PVC Profiles tailored to their equipment and profile geometry. This system integrated three core technologies to target their specific defects:

1. Advanced Ca-Zn Complex with Hydrotalcite Synergy

• Primary stabilizer: Calcium-zinc (Ca-Zn) soap complex optimized for long-term heat resistance.

• Boosted with synthetic hydrotalcite (5–8% of package) to rapidly scavenge HCl and prevent zinc burn.

• Result: Congo Red stability extended to 12–14 minutes at 180°C, eliminating thermal degradation during extrusion.

2. Balanced Internal/External Lubricant Package

• Custom wax blend to improve melt flow and reduce die adhesion.

• Internal lubricants: Promote uniform plasticization without delaying fusion.

• External lubricants: Reduce metal contact and plate-out, extending die cleaning cycles.

3. Processing & Compatibility Additives

• PVC processing aid (ACR-based) to enhance melt strength and surface smoothness.

• Anti-oxidant & UV co-stabilizer to prevent yellowing from oxidation and outdoor exposure.

Recommended dosage: 4.8–5.2 phr (slightly higher than their previous 4.0 phr, but justified by performance gains).

Trial Implementation & On-Site Results

We implemented the new stabilizer system in a phased trial over 4 weeks. The client maintained all other formulation components and process parameters (temperature, speed, vacuum) to isolate the stabilizer effect.

Key Process Adjustments Made

• Slightly reduced barrel Zone 4–5 temperatures (185°C → 178°C) to match the new stabilizer’s wider processing window.

• Increased vacuum level to -0.06~-0.07 MPa to remove volatiles and prevent bubbles.

• Extended pre-mixing time by 90 seconds to ensure uniform dispersion of the stabilizer package.

Before vs. After Performance Comparison

The table below summarizes measurable improvements:

Qualitative Improvements

• Surface finish: Profiles had a smooth, glossy, uniform white finish with no streaks or blemishes.

• Processing stability: Melt pressure and torque stayed consistent for entire shifts; no sudden surges or stalls.

• Weld strength: Corner welds passed 5+ hammer impacts without breaking, meeting national construction standards.

• Weather resistance: Accelerated UV testing showed 50% less yellowing after 1000 hours (QUV-A).

Why the New PVC Stabilizer Resolved the Defects

Let’s break down the direct link between our stabilizer technology and eliminating each issue:

1. Eliminating Yellowing & Black Streaks

• The hydrotalcite-modified Ca-Zn system neutralizes HCl gas immediately upon release, stopping the chain reaction that causes discoloration.

• Superior heat stability prevents polymer decomposition and carbonization even during long residence times.

• No zinc burn: The hydrotalcite component stabilizes zinc ions, preventing premature darkening at high shear.

2. Removing Bubbles & Rough Surfaces

• Better lubrication balance ensures complete and uniform plasticization.

• Improved melt fluidity reduces trapped volatiles; enhanced vacuum efficiency removes remaining gases.

• Higher melt strength prevents bubble formation and collapse during die exit.

3. Fixing Brittleness & Boosting Toughness

• Prevents thermal degradation, preserving PVC molecular weight and chain integrity.

• The stabilizer’s compatibility with impact modifiers (CPE/ACR) ensures uniform dispersion and maximum toughness.

• Reduced plate-out means fewer micro-stress points in the final profile.

4. Minimizing Die Buildup

• Optimized internal/external lubrication reduces friction and adhesion between PVC melt and metal surfaces.

• Clean, stable melt minimizes degraded residues that cause plate-out.

• Longer production runs between cleanings lowered labor and downtime costs.

Client Business Impact

Within 2 months of full adoption:

• Production output increased by 12% due to fewer shutdowns and less scrap handling.

• Customer complaints fell by 90%, with zero major quality returns in 6 months.

• The client expanded into higher-margin commercial window profiles that required stricter quality certifications.

• They reduced their total additive cost per ton by 3.5% despite a slightly higher stabilizer dosage, thanks to lower scrap and higher productivity.

Key Takeaways for PVC Profile Manufacturers

From this project and dozens of similar interventions, we’ve identified critical lessons for reducing defects:

• Not all PVC Stabilizer for PVC Profiles are equal
General-purpose Ca-Zn stabilizers often lack the thermal capacity and lubrication balance needed for modern, high-output profile lines. Invest in stabilizers engineered specifically for profiles—they include co-stabilizers, lubricants, and processing aids in one optimized package.

• Stabilizer dosage matters (but don’t overdo it)
Under-stabilization causes degradation; over-stabilization delays plasticization and weakens profiles. Work with your supplier to find the optimal dosage window.

• Stabilizer and process must be aligned
A high-performance stabilizer delivers value only when paired with proper temperatures, vacuum, mixing, and screw design. Always conduct on-site trials and fine-tune processes together with your stabilizer partner.

• Long-term stability ≠ initial color
Many stabilizers look good initially but degrade after hours of production or months of outdoor use. Prioritize sustained thermal stability and weatherability, not just short-term whiteness.

For PVC profile manufacturers, defects are rarely just “process issues”—they often trace back to an inadequate or mismatched stabilizer system. In this case, replacing a basic Ca-Zn stabilizer with our specialized PVC Stabilizer for PVC Profiles cut defects by over 80%, saved the client tens of thousands monthly, and unlocked growth into higher-value markets. If you’re struggling with yellowing, bubbles, brittleness, or plate-out in your PVC profile production, the solution likely lies in upgrading to a profile-specific stabilizer package that integrates advanced heat stability, balanced lubrication, and synergistic additives.

At TopJoy Chemical, we don’t just sell PVC stabilizers—we deliver defect-reduction solutions tailored to your formulation, equipment, and quality goals. Our team of polymer chemists and field engineers can conduct a full audit, run side-by-side trials, and help you achieve consistent, high-quality PVC profiles with minimal scrap and maximum efficiency. To discuss your specific defect challenges or test our PVC Stabilizer for PVC Profiles in your line, contact our technical support team today.
